-800x800.png "IPC-PTS2649C-3E3Z-4GB20-EAU new-products 3+3MP WizColor Hybrid-zoom PT 4G Solar Power Network Camera")

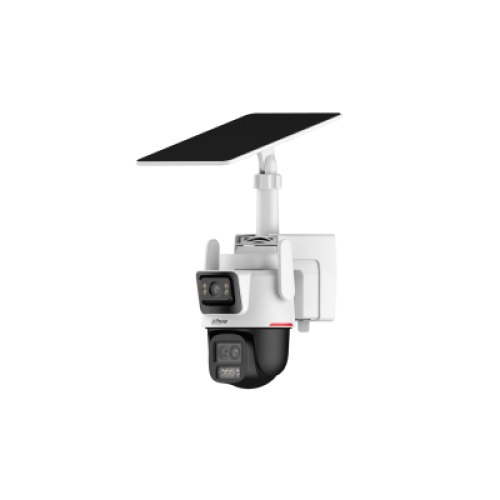

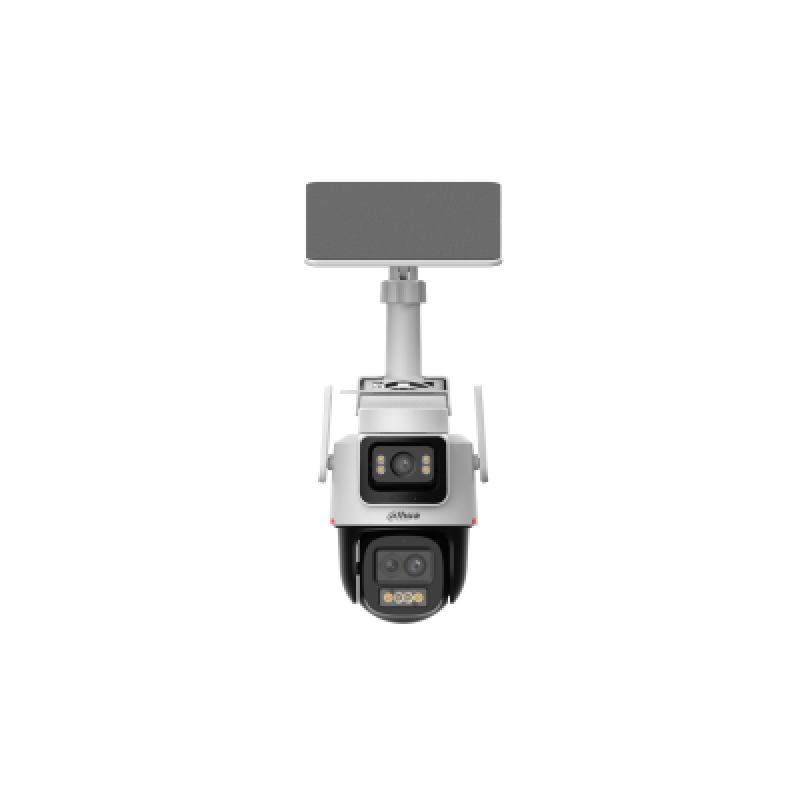

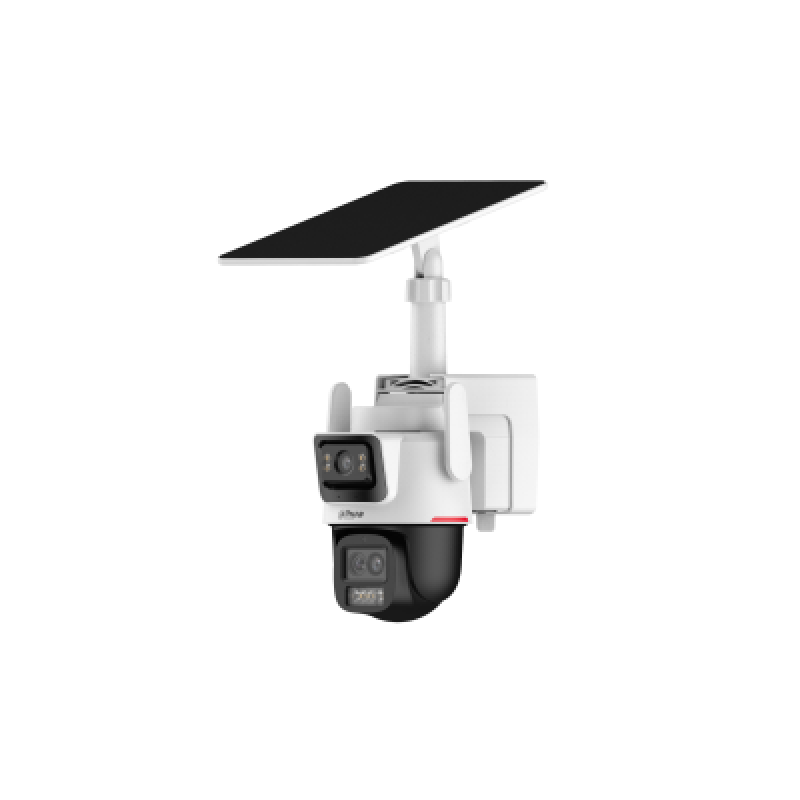

IPC-PTS2649C-3E3Z-4GB20-EAU new-products 3+3MP WizColor Hybrid-zoom PT 4G Solar Power Network Camera
- Brand: AJUHA
- Product Code: IPC-PTS2649C-3E3Z-4GB20-EAU
- Availability: In Stock
$1,269.20
- Ex Tax: $1,056.00
> Displays videos in two channels at the same time
> 1/2.8" 3Megapixel CMOS
> WizColor technology
> 6x hybrid zoom
> Two-way talk
> SMD3.0
> Siren and Light Active Deterrence
> Auto Tracking Lite
> Supports AOV mode
> 4G Connection
> Built-in 65Wh high-capacity ternary lithium battery
> Supports Type-C power supply
> Supports manual adjustment of fixed lens (Vertical: -7° to 20°)
> IP66
Tags: 4
| Technical | |
| Camera | Image Sensor Fixed Lens: 1/2.8" CMOS PT Lens: 1/2.8" CMOS Pixel Fixed Lens: 3 MP PT Lens: 3 MP Max. Resolution Fixed Lens: 2304 (H) × 1296 (V) PT Lens: 2304 (H) × 1296 (V) ROM 256 MB RAM 256 MB Scanning System Progressive Min. Illumination Fixed Lens: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on) PT Lens: 0.0005 lux@F1.0(Color, 30 IRE); 0 lux (Illuminator on) Illumination Distance Fixed Lens: 30 m (98.43 ft) (Warm light) PT Lens: 50 m (164.04 ft) (Warm light) Illuminator On/Off Control Fixed Lens: Manual; Auto; Off PT Lens: Manual; Auto; Off Illuminator Number Fixed Lens: 4 (Warm light) PT Lens: 4 (Warm light) |
| Certification | Certification Certifications CE: EN 55032/EN 55035/EN 50130-4/EN 61000-3/EN 62368-1/EN 301489 |
| Memory | |
| Leans | Focal Length Fixed Lens: 2.8 mm PT Lens: 3.6 mm; 8.4 mm Max. Aperture Fixed Lens: F1.0 PT Lens: 3.6 mm: F1.0; 8.4 mm: F1.0 Field of View Fixed Lens: H: 93.5°; V: 51.9°; D: 110.1° PT Lens: 3.6 mm: H: 81.5°; V: 44.3°; D: 96.3° 8.4 mm: H: 15.1°; V: 8.4°; D: 17.8° Close Focus Distance Fixed Lens: 1.1 m (3.61 ft) PT Lens: 3.6 mm: 1.7 m (5.58 ft); 8.4 mm: 6 m (19.69 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 40 m (131.23 ft) 15.8 m (51.84 ft) 8 m (26.25 ft) 4 m (13.12 ft) 3.6 mm 51.43 m (168.73 ft) 20.31 m (66.65 ft) 10.29 m (33.75 ft) 5.14 m (16.87 ft) 8.4 mm 120 m (393.7 ft) 47.4 m (155.51 ft) 24 m (78.74 ft) 12 m (39.37 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ Pan/Tilt Range Fixed Lens: Pan: 0° to 210°; Tilt: -7° to +20° (manual) PT Lens: Pan: 0° to 350°; Tilt: 0° to +90° (Electric) Manual Control Speed Pan: 40°/s; Tilt: 40°/s Preset Speed Pan: 40°/s; Tilt: 40°/s Preset 50 Tour 8 (up to 32 presets per tour) Power-off Memory Yes Smart Event Human Detection Yes Vehicle Detection Yes Intelligence Smart Tracking Auto tracking lite Linkage tracking SMD SMD 3.0 Active Deterrence Light Warning White light warning Sound Warning Offers 3 sound alarm. Sound can be set from 1-100. Play times can be set from 1-10. Video Video Compression Smart H.265+ Streaming Capability 1 stream Resolution Fixed Lens: 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360) PT Lens: 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360) Video Frame Rate Fixed lens:Main stream: 3M/1080p/720p/640 × 360@(15 fps) PT lens:Main stream: 3M/1080p/720p/640 × 360@(15 fps) Bit Rate Control VBR Video Bit Rate H265: 54 kbps–1280 kbps WDR Fixed Lens: DWDR PT Lens: DWDR White Balance Auto Gain Control Auto Noise Reduction 3D NR Motion Detection Yes Image Rotation 180° S/N Ratio ≥55 dB Audio Built-in MIC Yes Built-in Speaker Yes |
| Motherboard | |
| Port | Audio Input 1 channel (built-in mic) Audio Output 1 channel (built-in speaker) |
| Power | Power Supply Power supply: Built in 65Wh lithium battery Comes with 8 W solar panel Charging: USB Type-C (Supports QC2.0) Power Consumption Super Power Saving Mode: 40 mW (4G keep-alive) AOV Mode: 170 mW (1 frame every 2 seconds, SD card recording, 4G keep-alive) Performance Mode 1: 2.4 W (4G streaming, SD card recording, PTZ static, illuminator off) Performance Mode 2: 3.7 W (4G streaming, SD card recording, PTZ static, illuminator on) Maximum Power Consumption: 8.0W (4G streaming, SD card recording, PTZ moving, illuminator on, speaker on) Power Adapter Optional Battery Capacity 65 Wh Environment Operating Temperature The unit device: Operating Temperature: –20 °C to +60 °C (–4 °F to +140 °F) Battery: Charging Temperature: –10 °C to +50 °C (+14°F to +122 °F) (The solar panel heating the battery first, and charging begins once the battery is heated to 0 °C) Discharging Temperature: –20 °C to +60 °C (–4 °F to +140 °F) Operating Humidity ≤95% Protection IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection |
| Structure | Product Dimensions 223.2 mm × 130.0 mm × 215.0 mm (8.79" × 5.12" × 8.46") (L × W × H) The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model. |
| Processor | |
| Alarm | Alarm Linkage warning light; audio Alarm Event Motion detection; human detection; vehicle detection |
| Network | Carrier Network System 4G Wireless Carrier Frequency Band EAU/EUR: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 LA: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B38/B40/B41 Max. Transmission Power 4G: Power class3: 23 dBm ± 2.7 dB Storage Micro SD card (512 GB) Management Software DMSS Mobile Client Android;iOS |
