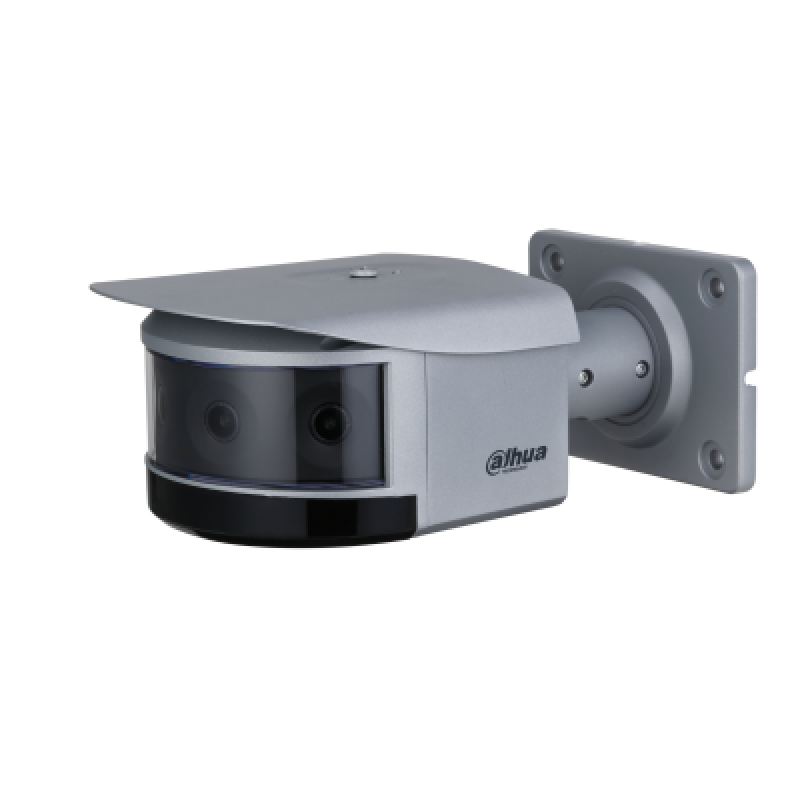

IPC-PFW83242-A180-S2 4 × 8 MP Multi-Sensor Panoramic Bullet WizMind Network Camera
- Brand: AJUHA
- Product Code: IPC-PFW83242-A180-S2
- Availability: In Stock
$1,082.00
- Ex Tax: $900.00
IPC-PFW83242-A180-S2
4 × 8 MP Multi-Sensor Panoramic Bullet WizMind Network Camera
> 4 × 8MP, 1/1.8" CMOS image sensor, low illuminance, high image definition
> Outputs max. 32MP (8192 × 3840) @25/30 fps; with intelligent functions enabled, it can output 32MP (8192 × 3840) @20 fps
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Intelligent functions: Crowd Distribution Map, Vehicle Density, Perimeter Protection, EPTZ.
> Support image correction.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256G SD card.
> 12 VDC/24 VAC/PoE power supply; easy for installation
> IP67 and IK10 protection
> AR panorama technology; various AR tags can be overlaid.
Tags: 2
| Cameara | |
| Video | Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Prioritize videos: Main stream: 8192 × 3840@(1–25/30 fps) Sub stream: 1280 × 600@(1–25/30 fps) Third stream: 2304 × 1080@(1–25/30 fps) Prioritize intelligence: Main stream: 8192 × 3840@(1–20 fps) Sub stream: 1280 × 600@(1–20 fps) Third stream: 2304 × 1080@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 3 streams Resolution 8192 × 3840; 7680 × 3600; 7168 × 3360; 6720 × 3152; 5760 ×2700; 4800 × 2252; 4096 × 1920; 2880 × 1360; 2304 × 1080; 2048× 960; 1520 × 712; 1280 × 600;8192 × 3840; 7680 × 3600; 7168 × 3360; 6720 × 3152; 5760 × 2700; 4800 × 2252; 4096 × 1920; 2880 × 1360; 2304 × 1080; 2048 × 960; 1520 × 712; 1280 × 600 Bit Rate Control CBR/VBR Video Bit Rate H.264: 96kbps–32768 kbps; H.265: 38kbps–32768 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR DWDR White Balance Auto;natural;street lamp;outdoor;manual;regional custom;Auto; natural; street lamp; outdoor; manual; custom area Gain Control Auto; Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Privacy Masking 4 areas Audio Audio Compression G.711a; G.711Mu; G.726: G.723; PCM |
| Technical | |
| Camera | Image Sensor 1/1.8" CMOS Max. Resolution 8192 (H) × 3840 (V) ROM 8 GB RAM 4 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.005 lux@F1.6 (Color,30 IRE) 0.0005 lux@F1.6 (B/W,30 IRE) 0 Lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 30 m (98.43 ft) (IR LED) Illuminator On/Off Control Auto; Manual Illuminator Number 8 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–90° Rotation:0°–360° |
| Certification | Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15; Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Memory | |
| Leans | Lens Type Fixed-focal Lens Mount M16 Focal Length 2.8 mm Max. Aperture F1.6 Field of View H: 180°; V: 100° Iris Control Fixed Close Focus Distance 1.8 m (5.90 ft) DORI Distance Detect Observe Recognize Identify 84.0 m (275.59 ft) 33.6 m (110.24 ft) 16.8 m (55.12 ft) 8.4 m (27.56 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Audio | Audio Compression G.711a; G.711Mu; G.726: G.723; PCM |
| Motherboard | |
| Port | RS-485 1 (baud rate range: 1200 bps–115200 bps) Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 2 channels in: 5mA 3V–5 VDC Alarm Output 2 channels out: 1,000mA 30 VDC/500 mA 50 VAC |
| Intelligence | EPTZ Yes IVS (Perimeter Protection) Tripwire; intrusion; parking detection Vehicle Density Vehicle density; parking upper limit; vehicle congestion alarm Crowd Distribution Map Crowd map, global people counting; people counting in area Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Power | Power Supply 12 VDC/24 VAC/PoE+(802.3at) Power Consumption Basic power consumption: 10.6 W (12 VDC); 11.9 W(24 VAC); 11.9 W (PoE) Max. power consumption (Intelligence on +IR intensity + WDR): 22.2 W (12 VDC); 25 W (24 VAC); 25 W (PoE) |
| Processor | |
| Alarm | Alarm Event No SD card; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion; parking detection; intensity change; traffic congestion; parking upper limit |
| Network | Network Port Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
