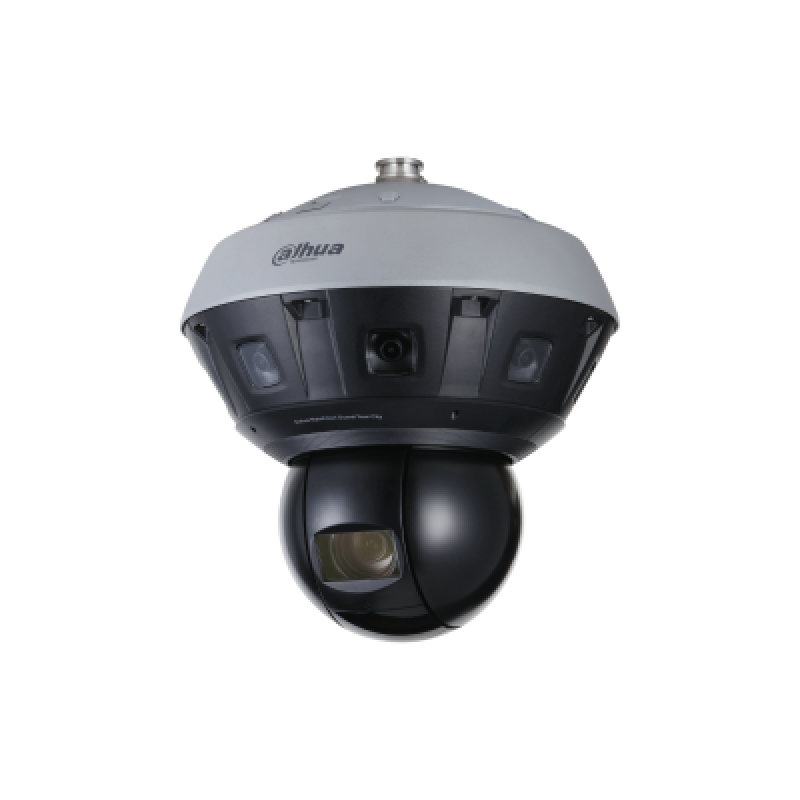

PSDW83242M-A360-D845L-S3s 32 MP Multi-Sensor 360° Panoramic PTZ Hubble WizMind Network Cameras
- Brand: AJUHA
- Product Code: PSDW83242M-A360-D845L-S3s
- Reward Points: 91
- Availability: In Stock
$848.00
- Ex Tax: $705.00
- Price in reward points: 90
32 MP Multi-Sensor 360° Panoramic PTZ Hubble WizMind Network Camera
> Panoramic parameters: 8 × 4 MP 1/1.8" CMOS image sensors. Outputs max. 32 MP (11520 × 2700)@25/30 fps.
> PTZ parameters: 1 × 8 MP 1/1.8" CMOS image sensors. Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Channel 2 (PTZ): Built-in illuminators (2 × IR and 7 × laser), max. illumination distance: 500 m.
> Channel 2 (PTZ): 45x optical zoom,16x digital zoom.
> H.265 codec, high compression rate, ultra-low bit rate.
> 3D NR, HLC, BLC, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 7 in, 3 out; audio: 2 in, 2 out; RS-485; BNC; supports max. 512 G SD card.
> Channel 1 (Panoramic): Three switchable intelligent resources: Perimeter protection, crowd map, vehicle density.
> Channel 2 (PTZ): Three switchable intelligent resources: Perimeter protection, video metadata, face recognition.
> GPS/BDS positioning.
asfdf dfgsf
Tags: 6
| Cameara | |
| Video | Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Channel 1 (Panoramic): Main stream: 11520 × 2700@(1-25/30fps) Sub stream: 2048 × 680@(1-25/30fps) Third stream: 1920 × 1080@(1-25/30fps) Channel 2 (PTZ): Main stream: 3840 × 2160@(1-25/30fps) Sub stream: 704 × 576@(1-25/30fps) Third stream: 1920 × 1080@(1-25/30fps) Stream Capability 3 streams Resolution Channel 1 (Panoramic): Main stream: 11520 × 2700; 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900 Sub Stream: 2048×452 Third Stream: 3840 × 832; 2560 × 560 Channel 2 (PTZ): Main stream: 3840 × 2160; 2560 × 1440; 1960 × 1080; 1280 × 960; 1280 × 720 Sub Stream: 704 × 576; 352 × 288 Third Stream: 1920 × 1080; 1280 × 960; 1280 × 720 Bit Rate Control CBR/VBR Video Bit Rate Channel 1 (Panoramic): H.264: 127 kbps–20736 kbps H.265: 50 kbps–12544 kbps Channel 2 (PTZ): H.264: 32 kbps–27740 kbps H.265: 12 kbps –16572 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR Channel 1 (Panoramic): DWDR Channel 2 (PTZ): 120 dB Scene Self-adaptation (SSA) Yes White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto; Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Channel 1 (Panoramic): Yes (4 areas) Channel 2 (PTZ): Yes (8 areas) Image Stabilization Channel 1 (Panoramic): NA Channel 2 (PTZ): Optical Image Stabilization Defog Channel 1 (Panoramic): NA Channel 2 (PTZ): Optical defog Image Rotation 0°/180° (Channel 2 (PTZ) Image Correction Channel 1 (Panoramic): No Channel 2 (PTZ): No Privacy Masking Channel 1 (Panoramic): 4 areas Channel 2 (PTZ): 24 areas (8 for each preset) |
| Technical | |
| Camera | Image Sensor 1/1.8" CMOS Max. Resolution 11520 (H) × 2700 (V) ROM Channel 1 (Panoramic): 8 GB Channel 2 (PTZ): 8 GB RAM Channel 1 (Panoramic): 4 GB Channel 2 (PTZ): 4 GB Scanning System Progressive Electronic Shutter Speed Channel 1 (Panoramic): Auto/Manual 1/3 s-1/100,000 s Channel 2 (PTZ): Auto/Manual 1/1 s-1/300,000 s Min. Illumination Channel 1 (Panoramic):0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE) Channel 2 (PTZ):0.001 lux @F1.5(Color, 30 IRE); 0.0001 lux @F1.5(B/W, 30 IRE); 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance Channel 1 (Panoramic): NA Channel 2 (PTZ): Up to 500 m (1640.42 ft) (Laser) Illuminator On/Off Control Auto; Zoomprio; Manual Illuminator Number Channel 1 (Panoramic):NA Channel 2 (PTZ):7( LASER LED); 2(IR LED) |
| Certification | Certifications CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Memory | |
| Leans | Lens Type Channel 1 (Panoramic): Fixed-focal Channel 2 (PTZ): Motorized vari-focal Lens Mount Channel 1 (Panoramic): M16 Channel 2 (PTZ): Module Focal Length Channel 1 (Panoramic): 2.8 mm Channel 2 (PTZ): 5.5 mm–248 mm Max. Aperture Channel 1 (Panoramic): F1.0 Channel 2 (PTZ): F1.5–F5.3 Field of View Channel 1 (Panoramic): H: 360°; V: 105° Channel 2 (PTZ): H: 2.02°–64.4°; V: 1.14°–38.37°; D: 2.29° Iris Control Channel 1 (Panoramic): Fixed Channel 2 (PTZ): Auto Close Focus Distance Channel 1 (Panoramic):1.4 m (4.59 ft) Channel 2 (PTZ): 0.1 m–5 m (0.33 ft–16.4 ft) (T to W) DORI Distance Lens Detect Observe Recognize Identify Channel 1 (Panoramic) 57.9 m (189.96 ft) 23.2 m (76.11 ft) 11.6 m (38.06 ft) 5.8 m (19.03 ft) Channel 2 (PTZ) 4420 m (14501.31 ft) 1768 m (5800.52 ft) 884 m (2900.26 ft) 442 m (1450.13 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Audio | Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 |
| Motherboard | |
| Intelligence | Intelligence Description Channel 1 (Panoramic): Perimeter protection, crowd distribution map, vehicle density. Channel 2 (PTZ): Perimeter protection, video metadata, face recognition IVS (Perimeter Protection) Channel 1 (Panoramic): Tripwire; intrusion; parking detection Channel 2 (PTZ): Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering Face Recognition Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures Vehicle Density Vehicle density; Parking upper limit; traffic congestion alarm Crowd Distribution Map Crowd map, global crowd density; crowd density in area; people counting in area Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, helmet. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Processor | |
| Alarm | Alarm Event No SD card; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; security exception |
| Network | Network Port RJ-45(10/100/1000 Base-T) SDK and API Yes Network Protocol Cybe 20 (Total bandwidth: 400 M) Storage |
